Operators

Author:

Antonio J. Nebro

Date:

2025-07-07

Operators are the building blocks of evolutionary algorithms in jMetal. Each operator is a function typically applied to one or more solutions, producing one or more new solutions. The source and result are typically a solution or a list of solutions, depending on the operator.

Operator Types

jMetal provides four main types of operators:

  1. Crossover: Recombines parent solutions to produce offspring solutions.

  2. Mutation: Modifies a single solution to introduce diversity.

  3. Selection: Chooses solutions from a population based on some criteria.

  4. Local Search: Applies local search techniques to improve solutions.

Crossover Operators

Crossover operators combine genetic information from parent solutions to create new offspring solutions.

For Double Solutions

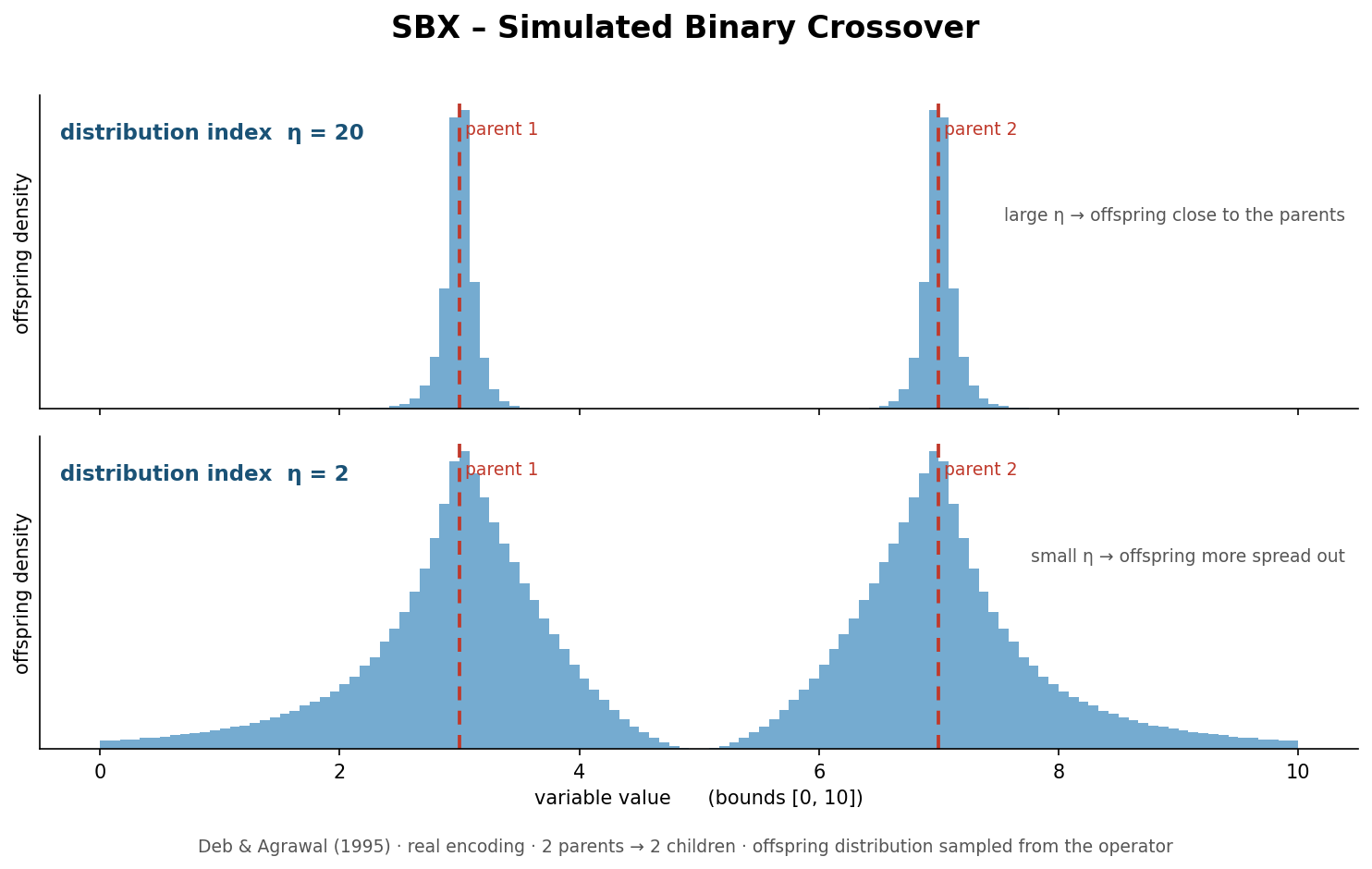

  • SBXCrossover: Simulated Binary Crossover with polynomial distribution.

  • BLXAlphaCrossover: Blend Crossover with alpha parameter.

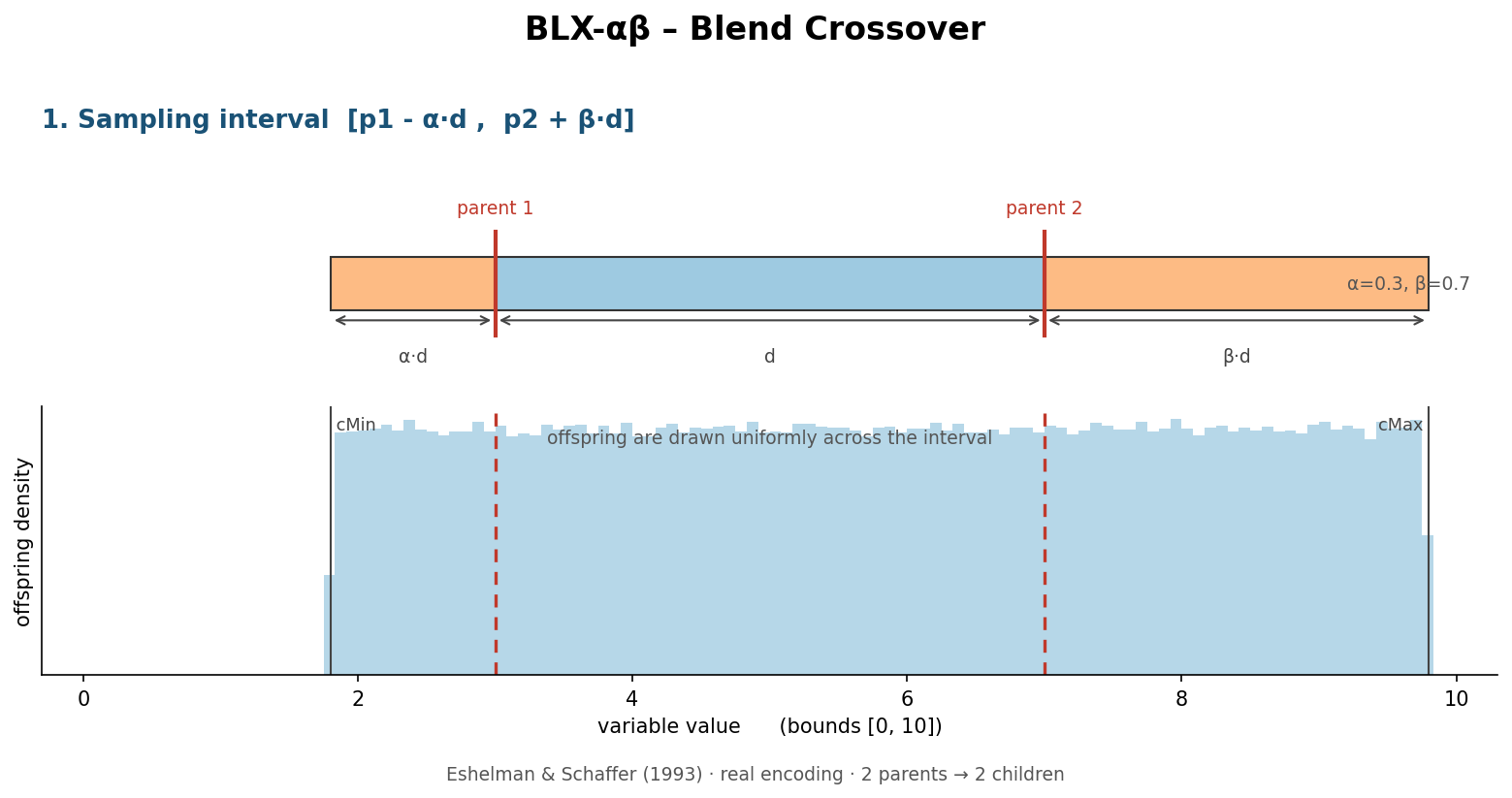

  • BLXAlphaBetaCrossover: Extended BLX with separate alpha and beta parameters.

  • DifferentialEvolutionCrossover: Used in Differential Evolution algorithms.

  • ArithmeticCrossover: Weighted arithmetic mean of parent solutions.

  • LaplaceCrossover: Based on Laplace distribution.

  • WholeArithmeticCrossover: Uses all parents in arithmetic recombination.

  • FuzzyRecombinationCrossover: Implements fuzzy recombination.

  • UnimodalNormalDistributionCrossover: Uses unimodal normal distribution.

For Integer Solutions

  • IntegerSBXCrossover: Integer version of SBX.

  • IntegerPolynomialCrossover: Polynomial crossover.

For Binary Solutions

  • HUXCrossover: Half Uniform Crossover.

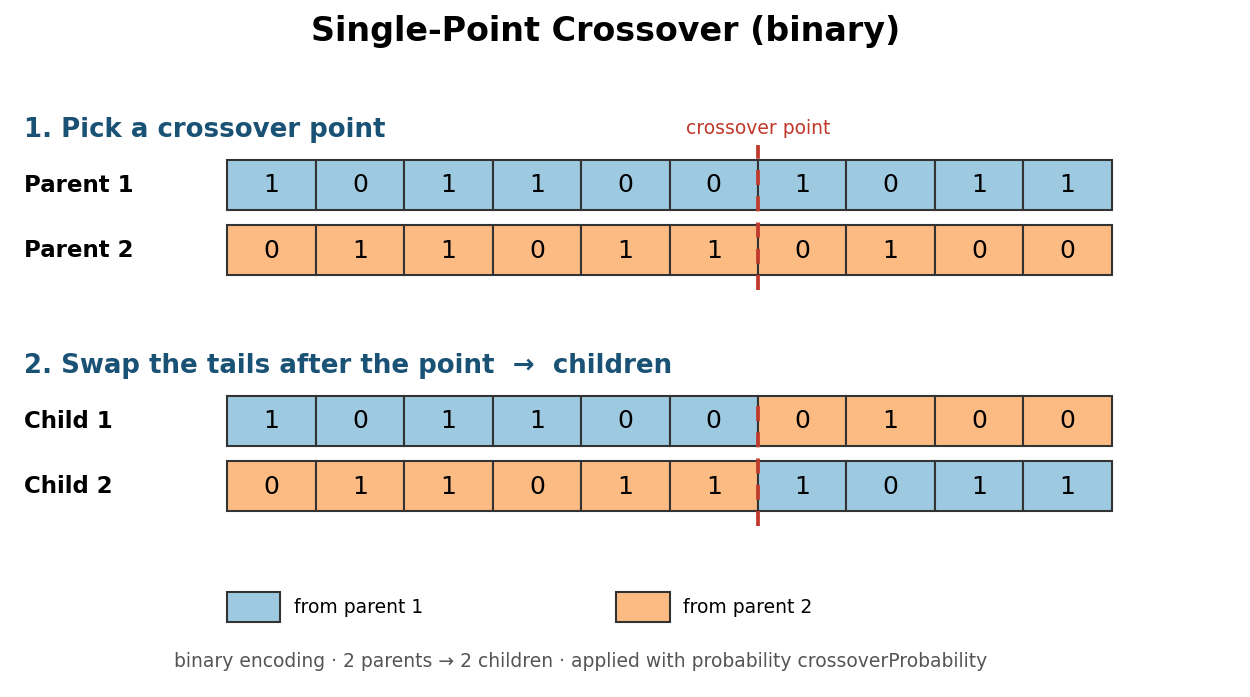

  • SinglePointCrossover: One-point crossover.

  • TwoPointCrossover: Two-point crossover.

  • NPointCrossover: General N-point crossover.

  • UniformCrossover: Random bit selection from parents.

For Permutation Solutions

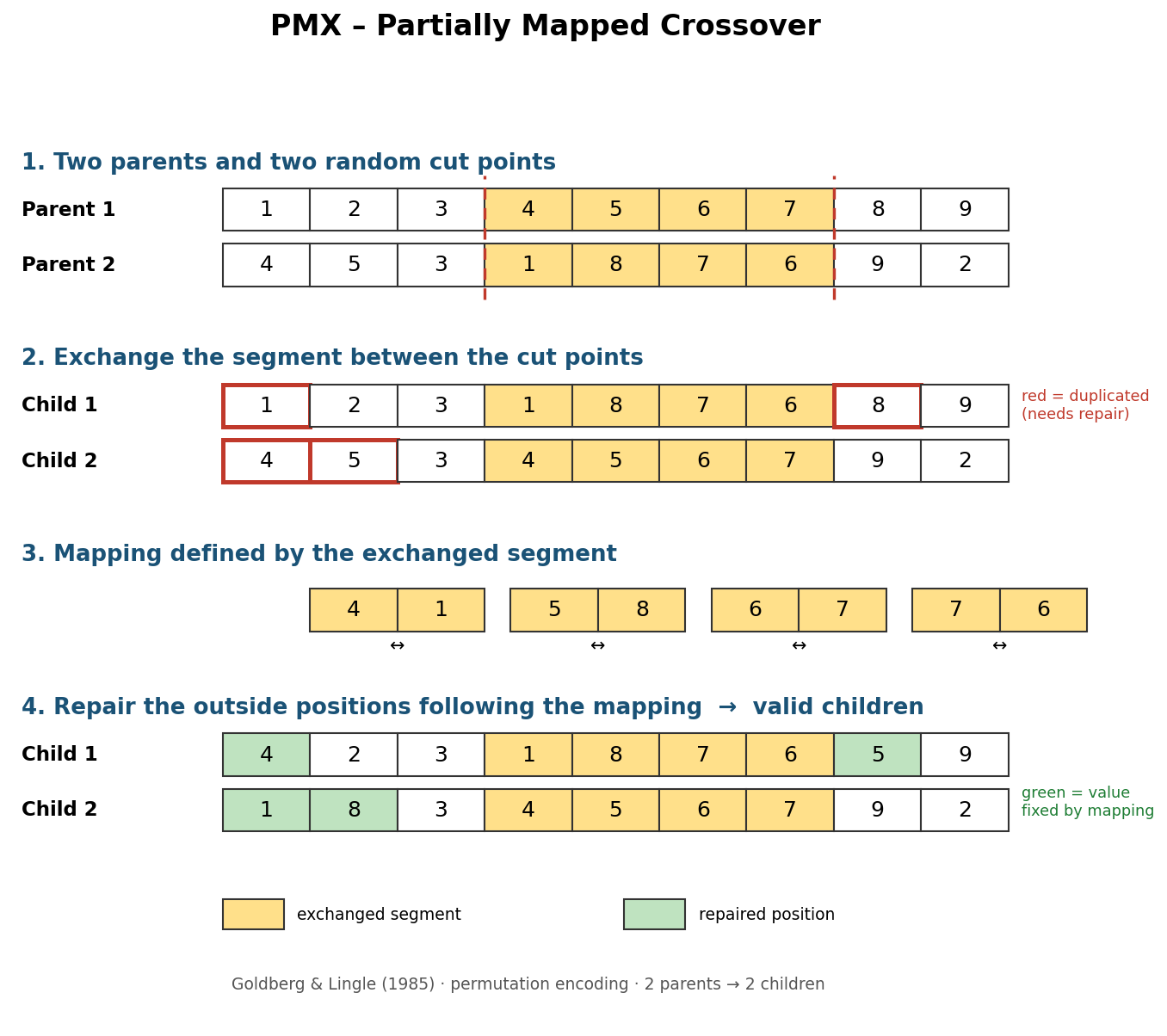

  • PMXCrossover: Partially Mapped Crossover.

  • CycleCrossover: Preserves absolute positions.

  • PositionBasedCrossover: Preserves relative ordering.

  • OXDCrossover: Order-based crossover.

  • EdgeRecombinationCrossover: Preserves adjacency information.

Mutation Operators

Mutation operators introduce random changes to solutions to maintain diversity.

For Double Solutions (Mutation)

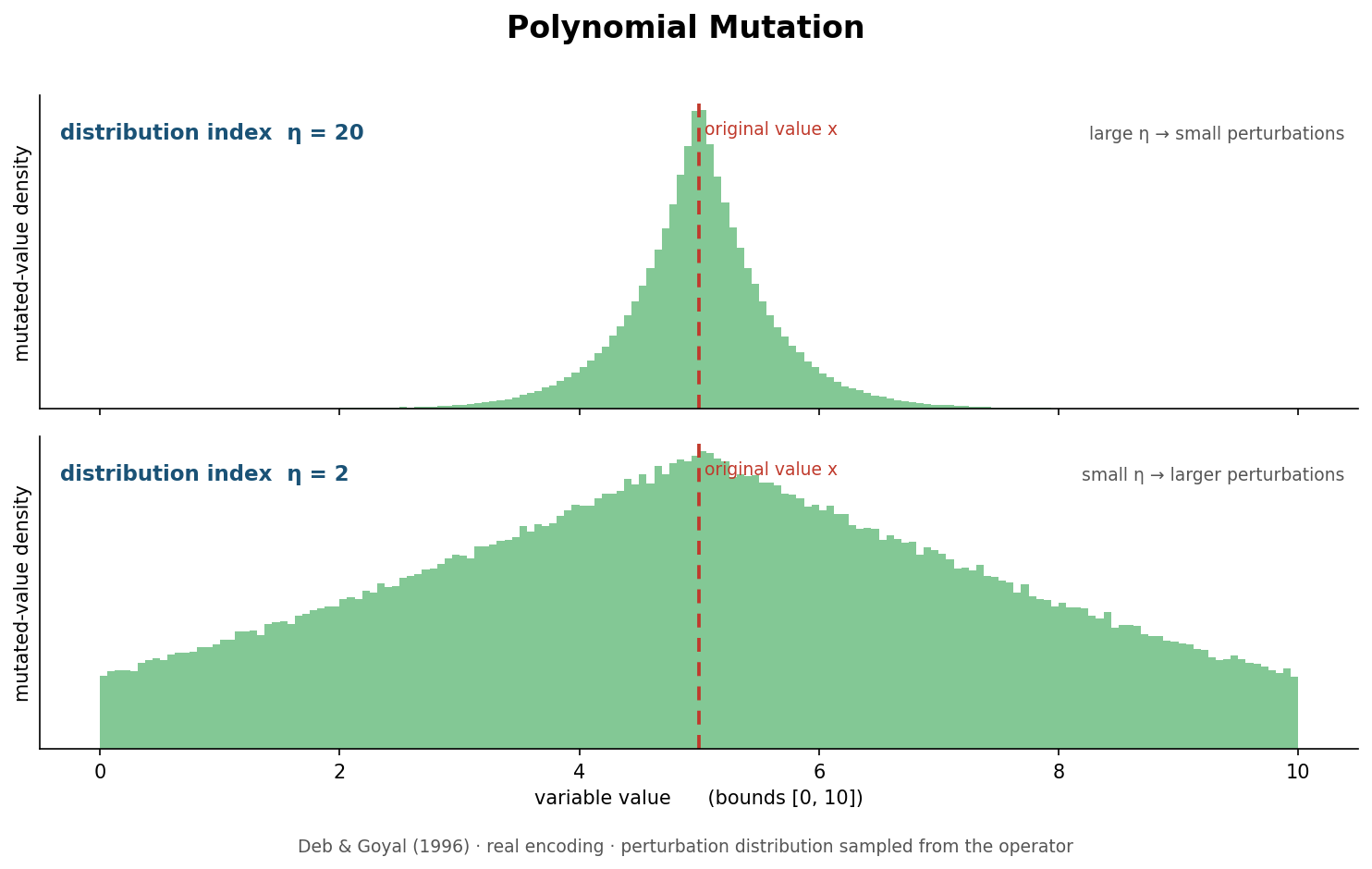

  • PolynomialMutation: Polynomial mutation.

  • NonUniformMutation: Strength decreases over time.

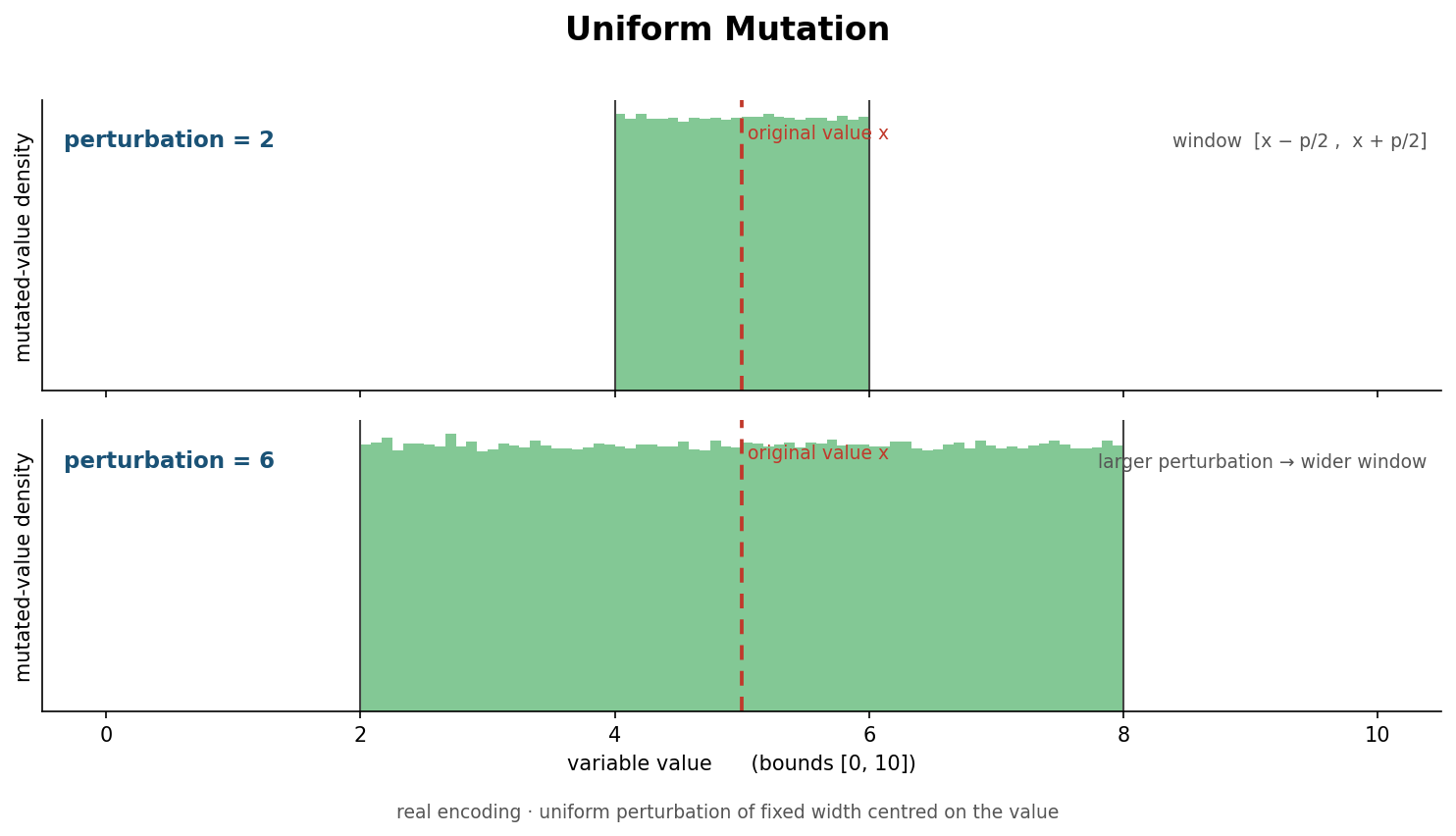

  • UniformMutation: Random mutation within bounds.

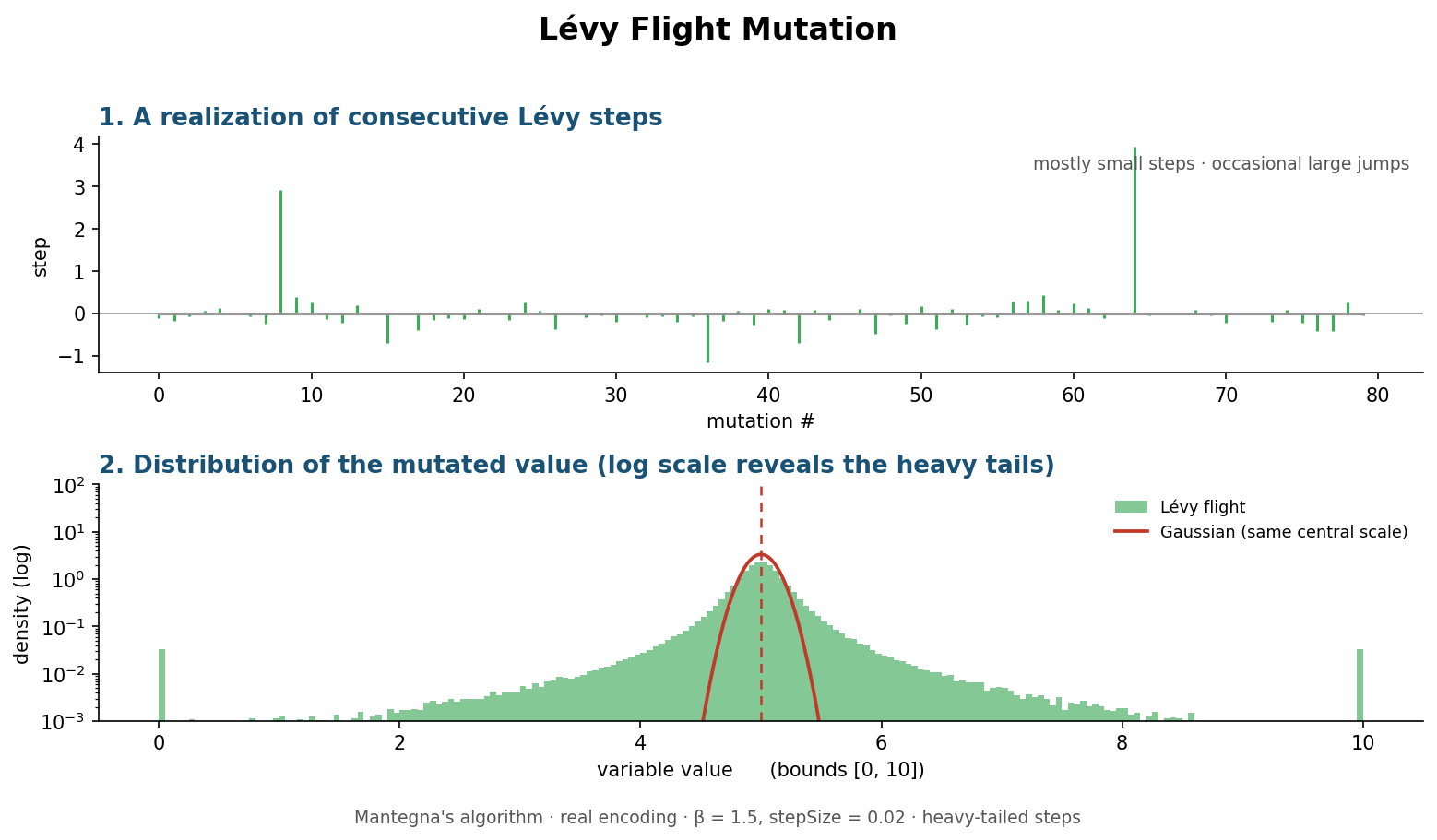

  • LevyFlightMutation: Uses Lévy flights.

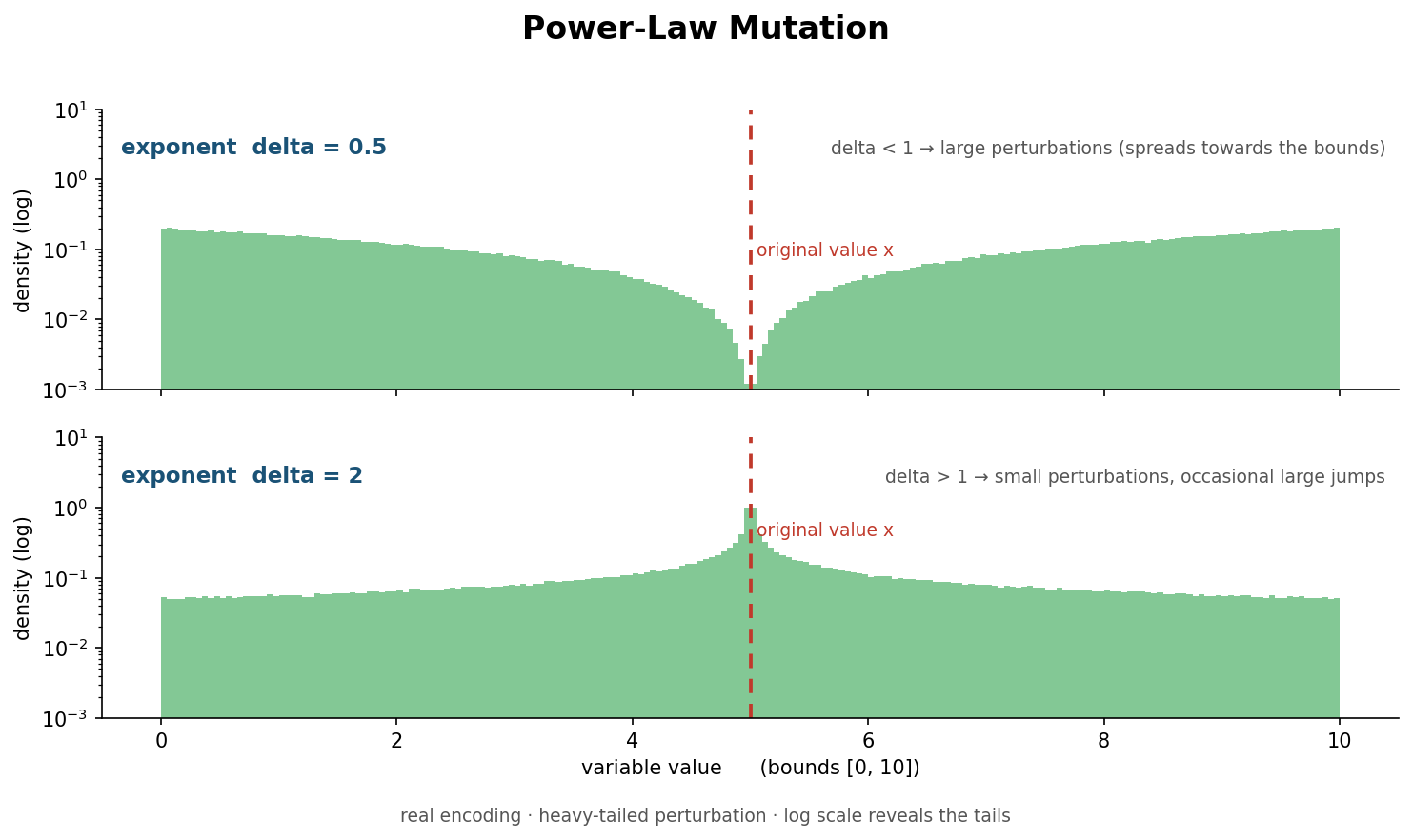

  • PowerLawMutation: Based on power law distribution.

  • SimpleRandomMutation: Uniform random mutation.

For Integer Solutions (Mutation)

  • IntegerPolynomialMutation: Integer version of polynomial mutation.

  • SimpleRandomMutation: Random perturbation of values.

For Binary Solutions (Mutation)

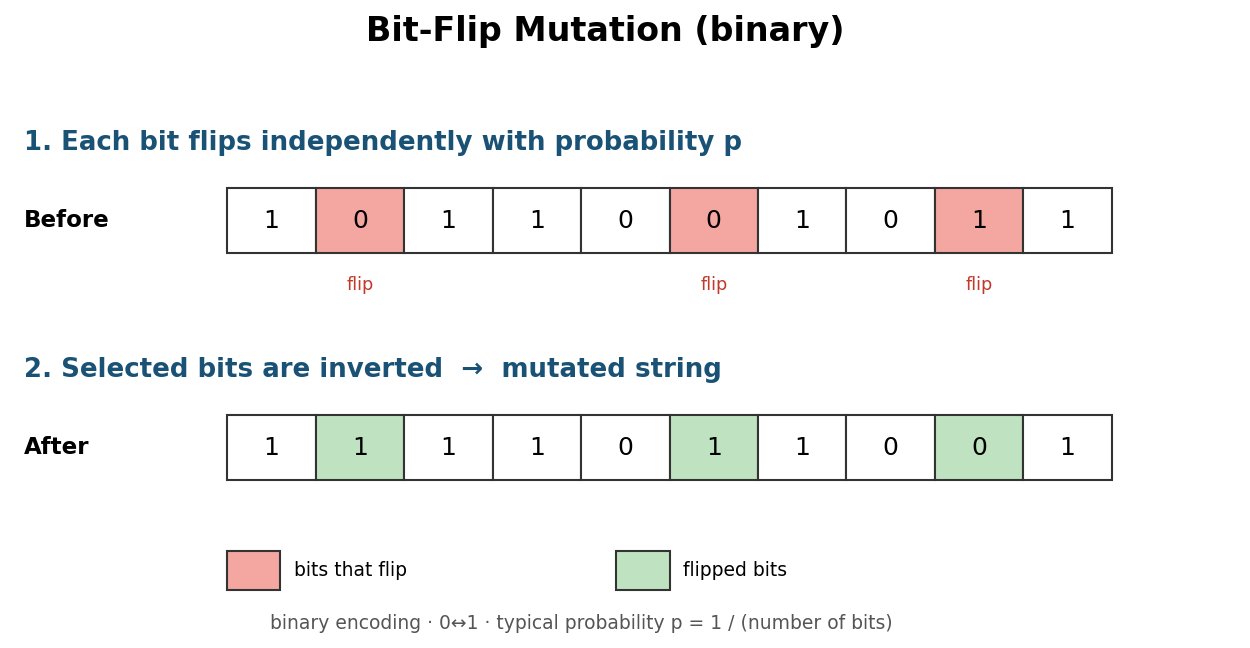

  • BitFlipMutation: Flips each bit with given probability.

For Permutation Solutions (Mutation)

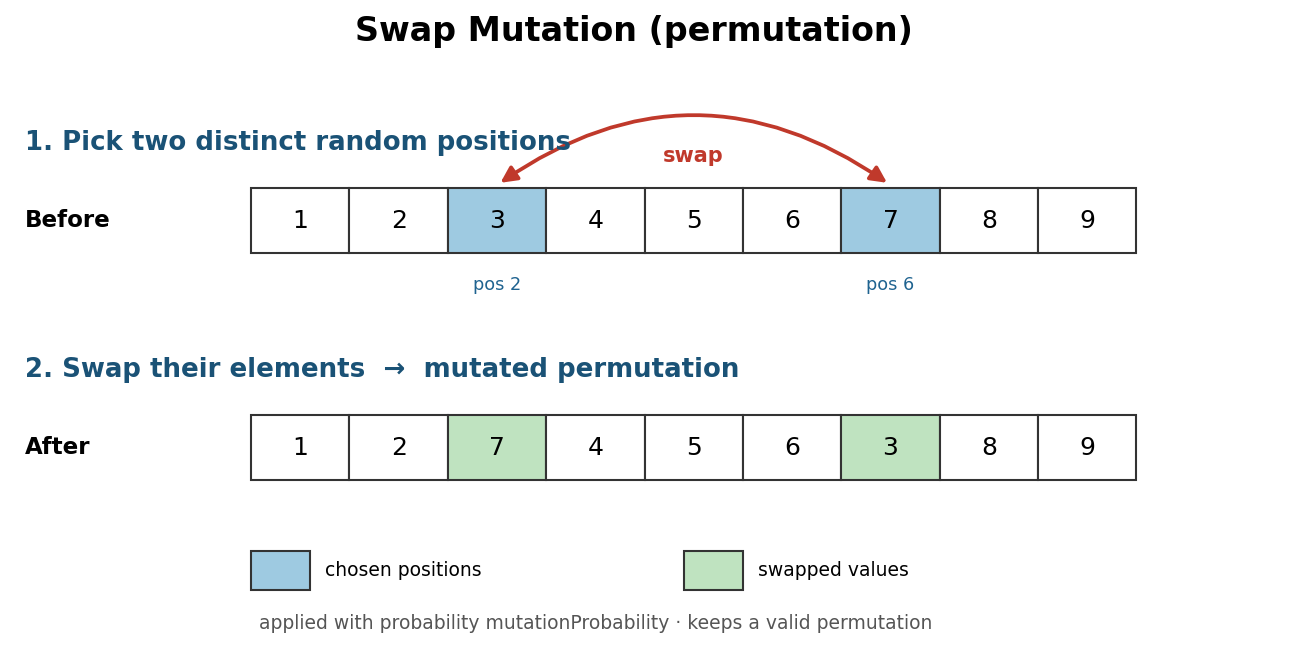

  • SwapMutation: Swaps two elements.

  • InsertMutation: Moves element to new position.

  • ScrambleMutation: Reorders subsequence.

  • InversionMutation: Inverts subsequence order.

  • DisplacementMutation: Moves subsequence.

  • SimpleInversionMutation: Inverts two elements.

Selection Operators

  • BinaryTournamentSelection: Better of two random solutions.

  • NaryTournamentSelection: Best of N random solutions.

  • RankingAndCrowdingSelection: NSGA-II selection.

  • RandomSelection: Uniform random selection.

  • BestSolutionSelection: Best in population.

  • RouletteWheelSelection: Fitness-proportional.

  • StochasticUniversalSampling: Improved roulette wheel.

Local Search Operators

  • BasicLocalSearch: Improves solutions locally.

Using Operators in jMetal

Example of creating and using a crossover operator:

// Create a SBX crossover operator with probability 0.9 and distribution index 20.0
double crossoverProbability = 0.9;
double distributionIndex = 20.0;
CrossoverOperator<DoubleSolution> crossover = new SBXCrossover(crossoverProbability, distributionIndex);

// Apply crossover to two parent solutions
List<DoubleSolution> parents = new ArrayList<>();
parents.add(parent1);
parents.add(parent2);
List<DoubleSolution> offspring = crossover.execute(parents);

Example of creating and using a mutation operator:

// Create a polynomial mutation operator with probability 0.1 and distribution index 20.0
double mutationProbability = 0.1;
double distributionIndex = 20.0;
MutationOperator<DoubleSolution> mutation = new PolynomialMutation(mutationProbability, distributionIndex);

// Apply mutation to a solution
DoubleSolution mutatedSolution = mutation.execute(solution);

Choosing the Right Operator

The choice of operators depends on several factors:

  1. Solution Encoding: Match the operator to your solution representation.

  2. Problem Characteristics: Some operators work better for certain problems.

  3. Diversity vs. Intensification: Balance exploration and exploitation.

  4. Computational Cost: Consider the complexity of the operator.
